Mazda CX-5 Service & Repair Manual: Ambient Temperature Sensor Removal/Installation [Full Auto Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the front bumper..

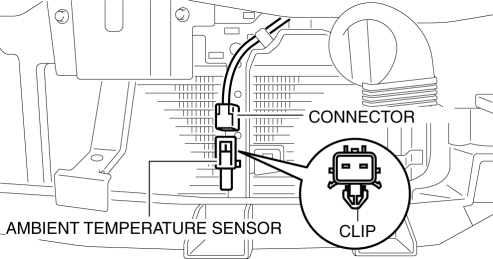

3. Disconnect the connector.
4. Remove the ambient temperature sensor.
5. Install in the reverse order of removal.
