Mazda CX-5 Service & Repair Manual: Ambient Temperature Sensor [Manual Air Conditioner]
Purpose
-
The ambient temperature sensor detects the ambient temperature.
Function
-
The ambient temperature sensor converts the detected temperature to an electric signal.
Construction
-
A thermistor-type ambient temperature sensor has been adopted.
-
The ambient temperature sensor is installed to the shroud panel on the back side of the front bumper.
Operation
-
The thermistor changes the resistance according to the surrounding temperature.
-

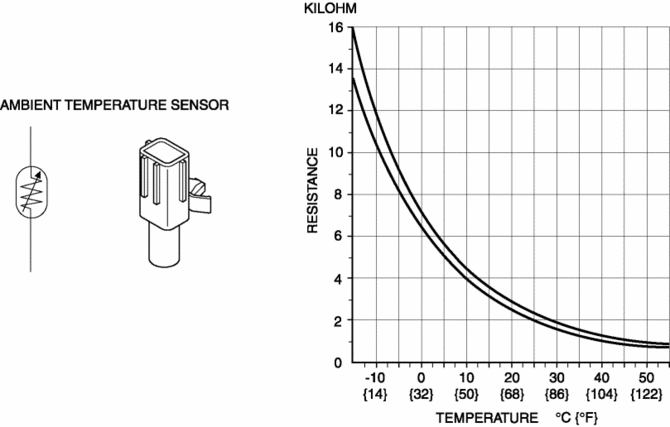

The resistance decreases if the temperature increases, and conversely increases if the temperature decreases as shown in the figure.
Fail-safe
-
Function not equipped.
Ambient Temperature Sensor [Full Auto Air Conditioner]
Purpose
The ambient temperature sensor detects the ambient temperature.
Function
The ambient temperature sensor converts the detected temperature to an electric
signal.
Co ...
Differential Oil Temperature Sensor
Purpose, Function
The differential oil temperature sensor detects the rear differential oil
temperature based on the resistance of the thermistor, and inputs it to the
AWD CM.
Const ...
