Mazda CX-5 Service & Repair Manual: Air Intake Actuator Removal/Installation [Manual Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the glove compartment..
3. Disconnect the air intake actuator connector.

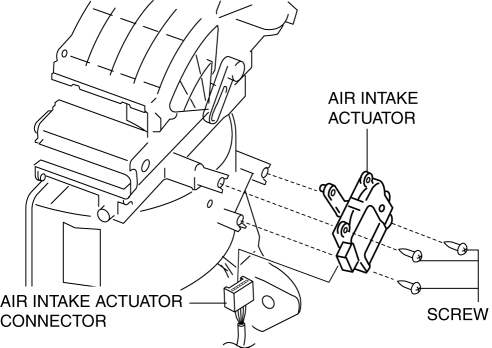

4. Remove the screw, then remove the air intake actuator.
5. Install in the reverse order of removal.
Air Intake Actuator Removal/Installation [Full Auto Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the glove compartment..
3. Disconnect the air intake actuator connector.
4. Remove the screw, then remove the air intake actuator.
5. I ...
Air Intake Actuator [Full Auto Air Conditioner]
Purpose
The air intake actuator moves the air intake door in the blower unit to switch
the air intake port.
Function
The air intake actuator drives the motor based on the signal ...
