Mazda CX-5 Service & Repair Manual: Air Intake Actuator Removal/Installation [Full Auto Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the glove compartment..
3. Disconnect the air intake actuator connector.

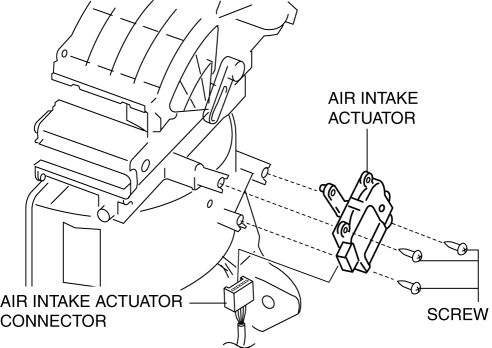

4. Remove the screw, then remove the air intake actuator.
5. Install in the reverse order of removal.
Air Intake Actuator Inspection [Manual Air Conditioner]
1. Connect battery positive voltage to air intake actuator terminal B (or C),
connect terminal C (or B) to ground, and then verify that the air intake actuator
operates as shown in the table.
...
Air Intake Actuator Removal/Installation [Manual Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the glove compartment..
3. Disconnect the air intake actuator connector.
4. Remove the screw, then remove the air intake actuator.
5. I ...
