Mazda CX-5 Service & Repair Manual: Air Intake Actuator [Full Auto Air Conditioner]

Mazda CX-5 Service & Repair Manual / Engine / Intake / Air Intake Actuator [Full Auto Air Conditioner]

Purpose

Function


Construction

Operation

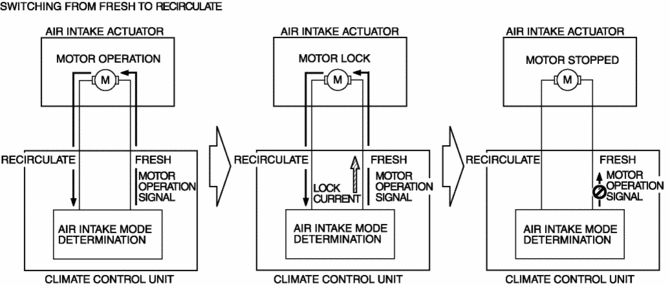

1. The climate control unit outputs a motor drive signal to the air intake actuator based on the air intake mode determined by the air intake control.

2. When the air intake actuator moves to FRESH or REC, the motor locks.

3. When the motor locks and is under excessive load, the current value flowing from the climate control unit increases more than the specification (lock current).

4. When the lock current is detected, the climate control unit stops the motor drive signal to the air intake actuator.


Fail-safe
