Mazda CX-5 Service & Repair Manual: Air Filter Removal/Installation
1. Remove the glove compartment..

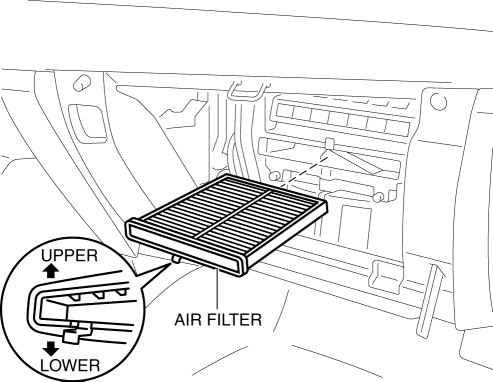

2. Remove the air filter.
3. Install in the reverse order of removal.
Air Filter Inspection
1. Verify that there is no damage, excessive dirt, or abnormal odor on the air
filter.
If there is any malfunction, replace the air filter.
NOTE:
The air filter cannot be reuse ...
Air Intake Actuator Inspection [Full Auto Air Conditioner]
1. Connect battery positive voltage to air intake actuator terminal B (or C),
connect terminal C (or B) to ground, and then verify that the air intake actuator
operates as shown in the table.
...
