Mazda CX-5 Service & Repair Manual: Air Cleaner Element Removal/Installation

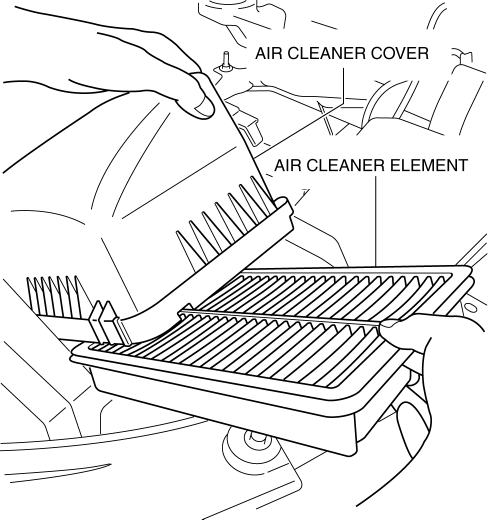

1. Remove the air cleaner element as shown in the figure.
2. Install in the reverse order of removal.
Air Cleaner Element Inspection
1. Remove the air cleaner element..
2. Inspect the following items:
Has the replacement interval past?
Is the air cleaner element soiled, damaged, or bent?
Are the air cleane ...
Air Cleaner
Purpose, Function
Prevents engine internal damage caused by penetration of dust or foreign
material.
Construction
The air cleaner is installed in front of the battery.
...
Other materials:
Rear Seat Center Armrest Removal/Installation
1. Operate the push knob (RH) and lower the rear seat back (RH).
2. Remove screw A.
3. Remove the rear seat center armrest hinge cover (RH) in the direction of the
arrow (1) shown in the figure while setting hook A aside.
4. Remove bolt B.
5. Remove the rear seat center armrest in ...
Magnetic Clutch Adjustment [Manual Air Conditioner]
1. Measure the clearance around the entire circumference between the pressure
plate and A/C compressor pulley using a thickness gauge.
2. Verify the clearance.
If not within the specification, remove the pressure plate and adjust the
clearance by changing the shim (0.2 mm {0.008 i ...
Parking Brake Lever Inspection
Stroke Inspection
1. Pump the brake pedal a few times.
2. Pull the parking brake lever two to three times.
3. Inspect the parking brake stroke by slowly pulling at point A 50 mm {2.0
in} from the end of the parking brake lever with a force of 98 N {10 kgf,
22 lbf} and counting the number of ...
