Mazda CX-5 Service & Repair Manual: Transaxle Fluid Temperature (Tft) Sensor [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-
The transaxle fluid temperature (TFT) sensor detects the ATF temperature in the oil pan.
-
The transaxle fluid temperature (TFT) sensor signal is used for automatic shift control, TCC control, line pressure control, direct electric shift control, learning control, and the on-board diagnostic system.
Construction
-

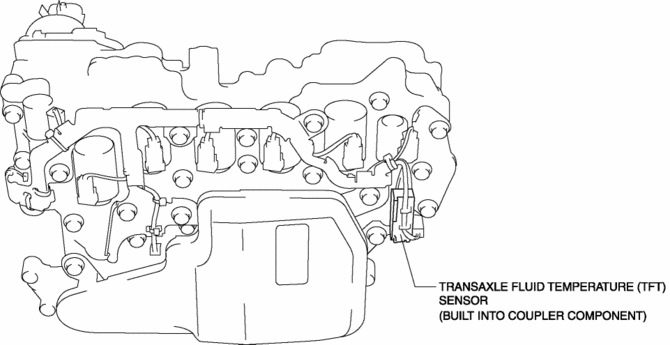

The transaxle fluid temperature (TFT) sensor is integrated with the coupler component and installed to the control valve body.
Operation
-
The transaxle fluid temperature (TFT) sensor outputs the signal corresponding to the ATF temperature in the oil pan to the TCM.
